STUDENT MICROSCOPE


MODEL » KG-2

STANDARD FEATURES
1.
 Sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
2
 Fixed square stage 110 mm x 110 mm
3.
 Dust proff triple revolving nose piece with positive click stops
4.
 Focusing by coarse and fine adjustment without scale
5.
 Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder
6.
 Illumination by plano concave mirror in fork mount
7.
 Steple Grey, chemical resistant, back-on finish
8.
 With dust cover dully packed in styofoam case

OPTICAL COMBINATION
EYE PIECES OBJECTIVES MAGNIFICATION
5X & 10X & 15X
[Huygenian] any Two
X10 & 40 S/L
[Achromatic]
X100 - X600

OPTIONAL ACCESSORIES
1.
 Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1
2.
 Mechanical stage for X - Y movements of slide
3.
 Eye Pieces...:...W.F. 10X
Objective......: .X4, X20, X45 S/L, X60 S/L, X100 S/L Oil lmm.
Send Enquiry

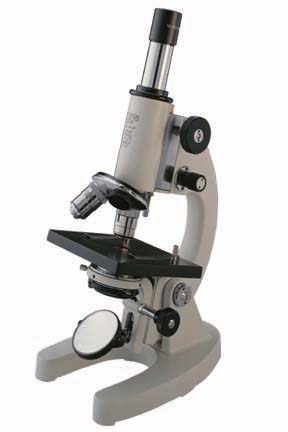

SENIOR STUDENT MICROSCOPE


MODEL » KG-3

STANDARD FEATURES
1.
 Sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
2.
 Mechanical tube length of 160 ± 1mm
3.
 Fixed square stage 110 mm x 110 mm
4.
 Dust proff triple revolving nose piece with positive click stops
5.
 Focusing by coarse and fine adjustment without scale
6.
 Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder focusable by Rack & Pinon
7.
 Illumination by plano concave mirror in fork mount
8.
 Steple Grey, chemical resistant, back-on finish
9.
 With dust cover dully packed in styofoam case
10.
 Complete parts of the microscope are pressure Die-casted

OPTICAL COMBINATION
EYE PIECES OBJECTIVES MAGNIFICATION
5X & 10X & 15X
[Huygenian] any Two
X10 & 40 S/L
[Achromatic]
X100 - X600

OPTIONAL ACCESSORIES
1.
 Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1
2.
 Mechanical stage for X - Y movements of slide
3.
 Eye Pieces...:...W.F. 10X
4.
Objective......: .X4, X20, X45 S/L, X60 S/L, X100 S/L Oil lmm.
Send Enquiry

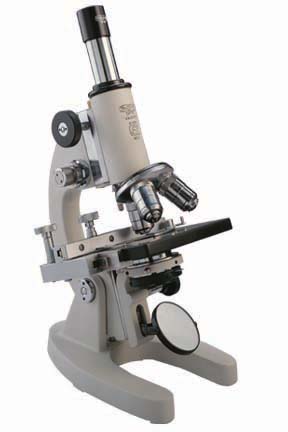

LABORATORY & MEDICAL MICROSCOPE


MODEL » KG-5

This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques.

The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in laboratories, universities and hospitals.

STANDARD FEATURES
1.
 Mechanical tube length of 160 ± 1mm
2.
 Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage
3.
 Dust proff triple revolving nose piece with positive click stops
4.
 Focusing by coarse and fine adjustment without scale
5.
 Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder focusable by Rack & Pinon
6.
 Illumination by plano concave mirror in fork mount
7.
 Steple Grey, chemical resistant, back-on finish

OPTICAL COMBINATION
EYE PIECES OBJECTIVES MAGNIFICATION
5X & 10X & 15X
[Huygenian] any Two
X10, X40 S/L & 100 Oil
[Achromatic]
X100 - X1500

OPTIONAL ACCESSORIES
1.
 Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1
2.
 Objective......:. .X4, X20, X45 S/L, X60 S/L
3.
 Eye Pieces...:...W.F. 10X
4.
Interchangable 45º inclined Monocular Tube
Send Enquiry

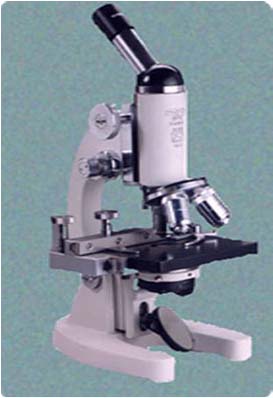

LABORATORY & MEDICAL MICROSCOPE (Inclined Head)


MODEL » KG-5(I)

This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques. The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in llaboratories, universities and hospitals.

STANDARD FEATURES
1.
 Mechanical tube length of 160 ± 1mm
2.
 Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage
3.
 Dust proff triple revolving nose piece with positive click stops
4.
 Focusing by coarse and fine adjustment without scale
5.
 Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder focusable by Rack & Pinon
6.
 Illumination by plano concave mirror in fork mount
7.
 Steple Grey, chemical resistant, back-on finish

OPTICAL COMBINATION
EYE PIECES OBJECTIVES MAGNIFICATION
5X & 10X & 15X
[Huygenian] any Two
X10, X40 S/L & 100 Oil
[Achromatic]
X100 - X1500

OPTIONAL ACCESSORIES
1.
 Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1
2.
 Objective......:. .X4, X20, X45 S/L, X60 S/L
3.
 Eye Pieces...:...W.F. 10X
Send Enquiry

PATHOLOGICAL MICROSCOPES


MODEL » MONO MINI

Viewing tube: Monocular head 45degree inclined

The miwcroscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features:

  • Head Rotatable at 360 degree.
  • Quadruple nose piece with positive click stops.
  • Coarse & Fine focusing Graduated to 1Div=.002mm.
  • with mechanical stage for X&Y movement of slide.
  • Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
  • Built in Illumination 6V-20W halogen lamp.with intensity control.
  • complete with day light reflector and dust cover.
  • Duly packed in styrofom packing.

Objectives:

4x, 10x, 40x s/l & 100x s/l Oil.
Eye Pieces: W.F.10x.

Send Enquiry

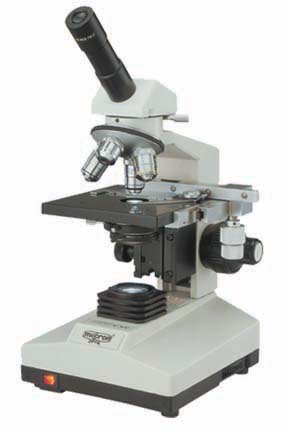

PATHALOGICAL MICROSCOPES


MODEL » MONO CXI

Micron offers CXI series the newely introduced Economical Design, which fulfills the complete features of a Biological Microscopes with models MONO CXI

TECHICAL SPECIFICATION
Viewing Tubes MONO CXi Monocular head 45o inclined
Nose Piece Quadruple Ball bearing Nose piece.
Mechanical Stage Low Drive Co-axial control, having X & Y movement of 55 mm & 75 mm. stops
Focussing System Co-axial Coarse & Fine focussing with focussing lock.
Condensor Abbe Condensor N.A. 1.25, with iris Diaphragm movable on Rack & Pinion.
Illumination 6V-20W Halogen Lamp (in-Built)
Objective (Ach) 4x,10x,40xSL & 100x Oil (P.D.:37MM)
Eye Piece Wild Field 10x
Accessories Day Light Reflector, Dust Cover
Packing Duly Packed in Styron Box
Send Enquiry

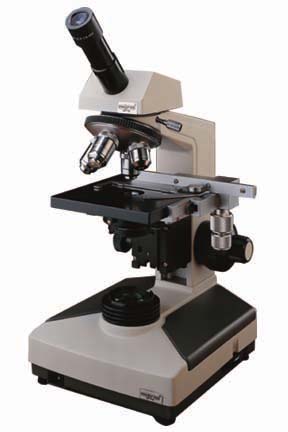

PATHOLOGICAL INCLINED MONOCULAR MICROSCOPE


MODEL » KG-7A

STANDARD FEATURES
1.
 45º inclined with 360 degree rotatable monocular tube
2.
 Co-axial built in Mechnical stage , designed with convenient coaxial adjustment for jerkfree smooth slide manipulation throught 50 X 75 mm
3.
 Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops
4.
 Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
5.
 Substage Abbe type N.A. 1.25 condenser with rack and pinion,with iris diaphragm with built in swing out filter holder
6.
 Steple Grey, chemical resistant, back-on finish
7.
 Exclusive preset focus lock prevents damage to valuable slides and objectives
8.
 Heavy rectangular sturdy base, with built-in illumination 6V - 20W halogen lamp
9.
 With dust cover packed in styrofoam packing

Performance of KG-7A
Objevtive
 Achromatic 4X Achromatic 10X Achromatic 40X [Spring] Achromatic 100X Oil [Spring]

Eye Piece W.F. 10X / 18 mm

OPTIONAL ACCESSORIES
Eye Piece Huygenian 5 X, 10 X & 15 X
Dark Field Condenser
Phase Contrast equipment
Send Enquiry

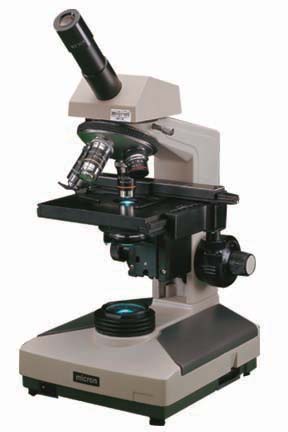

SENIOR RESEARCH BIOLOGICAL MICROSCOPE


MODEL » MMC-220

Micron MMC-220 is newly introduced series of education Microscope which extends top quality optics and uncompromising performance for educational and routine research work

STANDARD FEATURES
1.
 45º inclined with 360 degree rotatable monocular tube
2.
 Co-axial built in Mechnical stage 125 X 150 mm , designed with convenient coaxial adjustment on ball bearing guide ways for smooth slide manipulation throught 50 X 70 mm
3.
 Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops
4.
 Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
5.
 Substage Abbe type N.A. 1.25 condenser with rack and pinion,with iris diaphragm with built in swing out filter holder
6.
 Steple Grey, chemical resistant, back-on finish
7.
 Exclusive preset focus lock prevents damage to valuable slides and objectives
8.
 Heavy rectangular sturdy base, with built-in illumination 6V - 20W halogen lamp
9.
 With dust cover packed in styrofoam packing

Performance of MMC-220 DIN Objectives
Objective Achromatic
4X 10X 40X S/L 100X Oil Immersion [Spring]
Send Enquiry

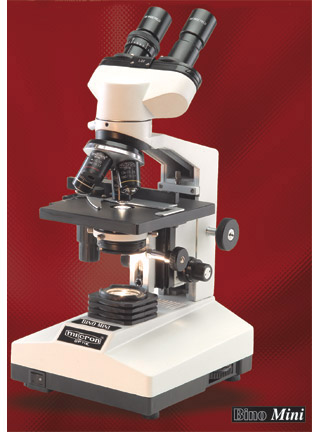

RESEARCH MICROSCOPES

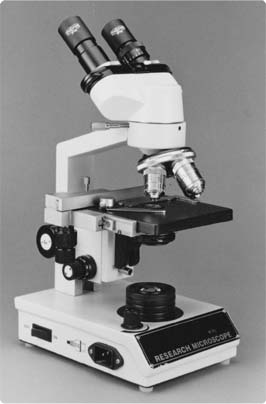

MODEL » BINO MINI

Viewing tube: Monocular head 45degree inclined

The miwcroscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features:

  • Head Rotatable at 360 degree.
  • Quadruple nose piece with positive click stops.
  • Coarse & Fine focusing Graduated to 1Div=.002mm.
  • with mechanical stage for X&Y movement of slide.
  • Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
  • Built in Illumination 6V-20W halogen lamp.with intensity control.
  • complete with day light reflector and dust cover.
  • Duly packed in styrofom packing.

Objectives:

4x, 10x, 40x s/l & 100x s/l Oil.
Eye Pieces: W.F.10x.

Send Enquiry

PATHALOGICAL MICROSCOPES

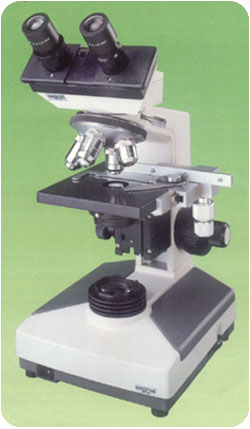

MODEL » BINO CXL

Micron offers CXI series the newely introduced Economical Design, which fulfills the complete features of a Biological Microscopes with models BINO CXI

TECHICAL SPECIFICATION
Viewing Tubes BINO CXi Binocular head 45o inclined/td>
Nose Piece Quadruple Ball bearing Nose piece.
Mechanical Stage Low Drive Co-axial control, having X & Y movement of 55 mm & 75 mm. stops
Focussing System Co-axial Coarse & Fine focussing with focussing lock.
Condensor Abbe Condensor N.A. 1.25, with iris Diaphragm movable on Rack & Pinion.
Illumination 6V-20W Halogen Lamp (in-Built)
Objective (Ach) 4x,10x,40xSL & 100x Oil (P.D.:37MM)
Eye Piece Wild Field 10x
Accessories Day Light Reflector, Dust Cover
Packing Duly Packed in Styron Box
Send Enquiry

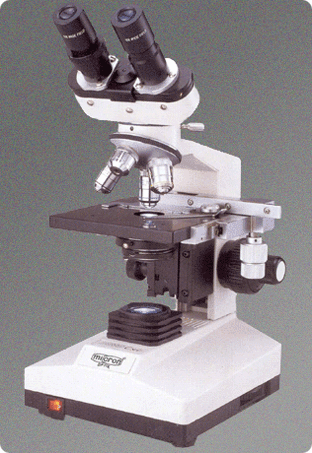

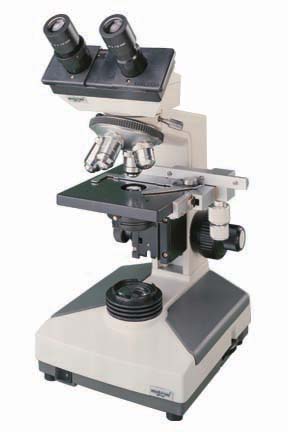

RESEARCH BINOCULAR MICROSCOPE


MODEL » BI-KG-7A

Micron Pathological Binocular Microscope Model BI-KG-7A Excel Economy is the newly introduced design for Medical colleges, Professionals & Laboratory use with the full features of the advanced research type Pathological Microscope. It has a very modern look & yet at a very afforable price that will surprise the most demanding users.

STANDARD OBJECTIVES
All the objectives are precentered and parfocal to minimise focusing procedures.

STANDARD FEATURES
1.
 45º inclined with 360 degree rotatable monocular tube
2.
 Co-axial built in Mechnical stage , designed with convenient coaxial adjustment for jerkfree smooth slide manipulation throught 50 X 75 mm
3.
 Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops
4.
 Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
5.
 Substage Abbe type N.A. 1.25 condenser with rack and pinion,with iris diaphragm with built in swing out filter holder
6.
 Steple Grey, chemical resistant, back-on finish
7.
 Exclusive preset focus lock prevents damage to valuable slides and objectives
8.
 Heavy rectangular sturdy base, with built-in illumination 6V - 20W halogen lamp
9.
 With dust cover packed in styrofoam packing

Performance of BI-KG-7A
Objevtive
 Achromatic 4X Achromatic 10X Achromatic 40X [Spring] Achromatic 100X Oil [Spring]

Eye Piece W.F. 10X / 18 mm
Send Enquiry

RESEARCH BINOCULAR MICROSCOPE


MODEL » BMC-220

Micron BMC-220 is newly introduced series of education Microscope which extends top quality optics and uncompromising performance for educational and routine research work

STANDARD FEATURES
1.
 45º inclined with 360 degree rotatable monocular tube
2.
 Co-axial built in Mechnical stage , designed with convenient coaxial adjustment for jerkfree smooth slide manipulation throught 50 X 75 mm
3.
 Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops
4.
 Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
5.
 Substage Abbe type N.A. 1.25 condenser with rack and pinion,with iris diaphragm with built in swing out filter holder
6.
 Steple Grey, chemical resistant, back-on finish
7.
 Exclusive preset focus lock prevents damage to valuable slides and objectives
8.
 Heavy rectangular sturdy base, with built-in illumination 6V - 20W halogen lamp
9.
 With dust cover packed in styrofoam packing
Performance of BMC-220 DIN Objective
Objevtive
 Achromatic 4X Achromatic 10X Achromatic 40X [Spring] Achromatic 100X Oil [Spring]

Eye Piece W.F. 10X / 18 mm (Paired)
Send Enquiry

TRINOCULAR MICROSCOPES


MODEL » TR-KG-6

Viewing tube: Trinocular head 45degree inclined.

The miwcroscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features:

  • Head Rotatable at 360 degree.
  • Quadruple nose piece with positive click stops.
  • Coarse & Fine focusing Graduated to 1Div=.002mm.
  • with mechanical stage for X&Y movement of slide.
  • Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
  • Built in Illumination 6V-20W halogen lamp.with intensity control.
  • complete with day light reflector and dust cover.
  • Duly packed in styrofom packing.

Objectives:

4x, 10x, 40x s/l & 100x s/l Oil.
Eye Pieces: W.F.10x.

Send Enquiry

TRINOCULAR MICROSCOPES


MODEL » TRINO CXI

Micron offers CXI series the newely introduced Economical Design, which fulfills the complete features of a Biological Microscopes with models TRINO CXI

TECHICAL SPECIFICATION
Viewing Tubes BINO CXi Binocular head 45o inclined/td>
Nose Piece Quadruple Ball bearing Nose piece.
Mechanical Stage Low Drive Co-axial control, having X & Y movement of 55 mm & 75 mm. stops
Focussing System Co-axial Coarse & Fine focussing with focussing lock.
Condensor Abbe Condensor N.A. 1.25, with iris Diaphragm movable on Rack & Pinion.
Illumination 6V-20W Halogen Lamp (in-Built)
Objective (Ach) 4x,10x,40xSL & 100x Oil (P.D.:37MM)
Eye Piece Wild Field 10x
Accessories Day Light Reflector, Dust Cover
Packing Duly Packed in Styron Box
Send Enquiry

TRINOCULAR MICROSCOPE


MODEL » TR-KG-7A

Micron Pathological Trinocular Microscope Model TR-KG-7A Excel Economy is the newly introduced design for Medical colleges, Professionals & Laboratory use with the full features of the advanced research type Pathological Microscope. It has a very modern look & yet at a very afforable price that will surprise the most demanding users.

STANDARD OBJECTIVES
All the objectives are precentered and parfocal to minimise focusing procedures.

STANDARD FEATURES
1.
 45º inclined with 360 degree rotatable monocular tube
2.
 Co-axial built in Mechnical stage , designed with convenient coaxial adjustment for jerkfree smooth slide manipulation throught 50 X 75 mm
3.
 Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops
4.
 Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
5.
 Substage Abbe type N.A. 1.25 condenser with rack and pinion,with iris diaphragm with built in swing out filter holder
6.
 Steple Grey, chemical resistant, back-on finish
7.
 Exclusive preset focus lock prevents damage to valuable slides and objectives
8.
 Heavy rectangular sturdy base, with built-in illumination 6V - 20W halogen lamp
9.
 With dust cover packed in styrofoam packing

Performance of TR-KG-7A
Objevtive
 Achromatic 4X Achromatic 10X Achromatic 40X [Spring] Achromatic 100X Oil [Spring]

Eye Piece W.F. 10X / 18 mm
Send Enquiry

TRINOCULAR MICROSCOPE


MODEL » TMC-220

Micron offers TMC-220 series, comprises top quality DIN standard optics, latest in techniques to achive the uncompromising performance in comparison with any of the imported Microscope at affordable price.

STANDARD FEATURES
1.
 45º inclined with 360 degree rotatable monocular tube
2.
 Co-axial built in Mechnical stage , designed with convenient coaxial adjustment for jerkfree smooth slide manipulation throught 50 X 75 mm
3.
 Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops
4.
 Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm
5.
 Substage Abbe type N.A. 1.25 condenser with rack and pinion,with iris diaphragm with built in swing out filter holder
6.
 Steple Grey, chemical resistant, back-on finish
7.
 Exclusive preset focus lock prevents damage to valuable slides and objectives
8.
 Heavy rectangular sturdy base, with built-in illumination 6V - 20W halogen lamp
9.
 With dust cover packed in styrofoam packing

OPTICAL COMBINATION
1.

Objective .....:. X4, X10, X40 S/L & 100 Oil [Achromatic]
2.
 Eye Pieces ...... W.F. 10X/18 M M (paired) & P7X

TMC-I :
 Trinocular Microscope, complete with Microphotographic attachment having SLR Camera and view Finder
TMC-II :
 Trinocular Microscope, complete with CCD Camera & 14" coloured Television
TMC-III :

Trinocular Microscope with micro imaging system, complete with PC having CCD Camera, coloured Printer which can be used for Class Room Teaching also, Recording of Images/Slides, instant Printout of images as well as can be used as complete office Computer system for general purpose

OPTICAL ACCESSORIES
1.

Objective.....:. 5X, 10X, 15X [Huygenine]
2.
Dark Field Condensor, Phase Contrast Attachment
Send Enquiry

Quick Navigation

contact us

187, Princess Street, Above Bank Of Baroda, 2nd Floor,
Mumbai 400002
: 022 22067665
: +91 9920 183332
: sciencecorner@vsnl.net

Products

connect with us

©   All Rights Reserved By Science Corner
