STANDARD SIZES AVAILABLE

S.No.	SIZE	(H X W X D )
1	20 x 20 x 30 Cm.	2
2	30 x 30 x 40 Cm.	2
3	35 x 35 x 50 Cm.	3
4	45 x 45 x 45 Cm.	3
5	45 x 45 x 60 Cm.	3
6	45 x 45 x 60 Cm.	4

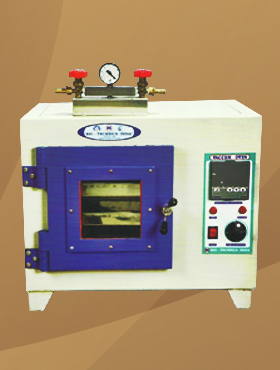

Vacuum Ovens Are Double Walled.

Inside Chamber Is Made Of Thick Stainless Steel 304 Quality.

Out Side Chamber Made Of Mild Steel Sheet Pre Greased, Pretreated For Rust Proofing And Powder Coated.

High Grade Glass Wool Insulation Between The Chambers To Avoid Heat Loss. Uniform Drying Under Vacuum.

Temp. Ranges From 50°c To 200°c With ± l'c Accuracy.

Vacuum Gauge of 760mm hg Displayed On Analog Guage.

Temp. Controlled By Digital Temp. Indicator Cum Controller.

Vacuum Chamber Is Wrapped With Set Of High Quality Heaters For Quick And Uniform Heating.

Door Has A Thick Tempered Toughned Glass Window. Perfectly Sealed With Silcon Rubber Gasket For Observation Without Disturbing Thermal Condition.

Proper Door Alignment To Ensure Excellent Vacuum Performance And Operators Safety.

Air Flow Through Out The Inner Chamber For Temp. Uniformity.

Positive Screw To Tighten The Lid To Obtain Perfect Seal.

Fitted With Diaphragm Valves And Vacuum Guage.

Control Panel With Temp. Controller, Switches And Indicating Lamps Provided On The Front Panel.

Suitable For 230V, Ac, 50hz.

Available In Rectangular Chamber Also.

Vacuum Control And Relief Valves Located On Front Of Unit For Convenient Monitoring.
