STANDARD SIZES AVAILABLE

S.No.	SIZE IN INCHAES	(W X D X H)
1	12" X 12" X 12"	(30 x 35 x 30 Cm.)
2	14" X 14" X 14"	(35 x 35 x 35 Cm.)
3	18" X 18" X 18"	(45 x 45 x 45 Cm.)
4	18" X 18" X 24"	(45 x 45 x 60 Cm.)
5	24" X 24" X 24"	(60 x 60 x 60 Cm.)
6	18" X 24" X 36"	(45 x 60 x 90 Cm.)
7	24" X 24" X 36"	(60 x 60 x 90 Cm.)

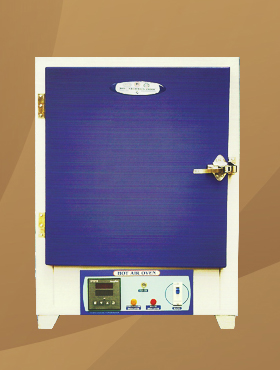

Hot Air Ovens Are Sturdy Double Walled Units.

Inner Chamber Made Of M.S./S. S. And Outer Made Of Mild Steel With Power Coating.

Gap Between The Walls Fitted With Glass Wool Insulation To Avoid Heat Loses.

Heating Elements Are Made Of High Grade Chrome Plated Microme Wire.

Temp.is Controlled By Thermostat.

Temp.range 50° C To 250° C And Accuracy : ±2c° (with digital accuracy ±1°c)

Air Ventilations Are Placed On Top Of Both Sides To Remove Hot Gases / Fumes.

In Memmert Type Units Heaters Placed At The Right And Left Side Of The Inner Chamber.

All The Control Switches & Pilot Lamps Are Fitted On The Front Panel.

Trays Should Be Supplied With G.i. Wire Mesh.

Optional Accessories:

1. Air Circulation Fan for Uniform Temperature.

2. Digital Temp. Controller cum indicator in lieu of thermostat with an accuracy ±1°c.

3. S.S. Trays.
