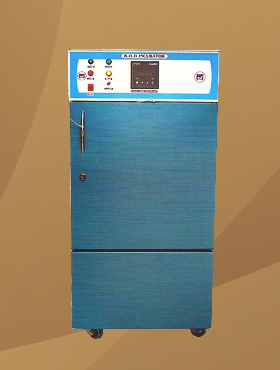

B.O.D. Incubator

STANDARD SIZES AVAILABLE

S.No. SIZE (H X W X D )
1 3 Cu. Ft (90 Ur) (45 x 45 x 50 Cm.)
2 6 Cu. Ft (170 Ltr) (50 x 50 x 70 Cm.)
3 10 Cu. Ft (280 Ltr) (55 x 55 x 90 Cm.)
5 12 Cu. Ft (320 Ltr) (60 x 60 x 90 Cm.)

Designed Specially Biological Oxyzen Demand Determination And Other Applications Like General Incubation, Serum Studies And Enzyme Assays Tests.

Castor Wheel Mounted Cabinet Is Double Walled.

Inner Chamber Made Of S. S. 316 Outer Chamber Made Of S. S. 304.

Full Length Inner Glass / Acrylic Door Permits Inspection Of Specimens With Out Disturbing The Temperature.

Temp. Controlled By Digital Temp. Controller Cum Indicator. Temperature Range 5°G To 60°c With An Accuracy Of ± 0.5°c.

This Unit Is Fitted With Door Operated Illumination Lamp Inside The Chamber.

Equipped With Hermitically Sealed Compressor CFC Free.

Air Circulation Fan For Maintaining Temp. Uniformity Through Out The Chamber.

Flush Fitting Insulated Double Walled Door Has Magnetic Gasket.

The Chamber Is Provided With Modular Removable Shelves Made Of S.s.for Complete Flexibility Is Use.

Air Flow Through Out The Inner Chamber For Temp. Uniformity.

To Work At 230 v A.c. Only.

PUF Insulation.
