STANDARD SIZES AVAILABLE

S.No.	SIZE	(H X W X D )
1	12" X 12" X 12"	(30 x 30 x 30 Cm.)
2	14" X 14" X 14"	(35 x 35 x 35 Cm.)
3	18" X 18" X 18"	(45 x 45 x 45 Cm.)
4	18" X 18" X 24"	(45 x 45 x 60 Cm.)
5	24" X 24" X 24"	(60 x 60 x 60 Cm.)
6	18" X 24" X 36"	(45 x 60 x 90 Cm.)
7	24" X 24" X 36"	(60 x 60 x 90 Cm.)

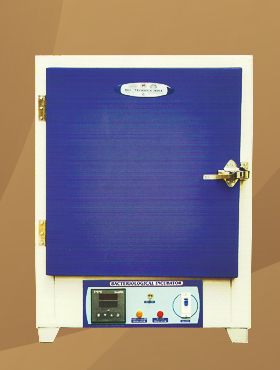

Incubators Are Sturdy Double Walled Units

Inner Chamber Made Of M.S. / S.S. And Outer Made Of Mild Steel With Powder Coating.

Gap Between The Walls Fitted With Glass Wool Insulation To Avoid Heat Loses.

Heating Elements Are Made Of High Grade Chrome Plated Nicrome Wire.

Temp. Is Controlled By Thermostat.

Temp. Range 5°c Above Ambient To 60°c And Accuracy: ±-2°C (with digital accuracy -±0.5°c)

Air Ventilations Is Provided On The Top Of The Unit To Remove The Hot Gases/Fumes.

In Lab Type Incubators Heaters Are Placed In The Bottom Side Of The Unit.

All The Control Switches SA Pilot Lamps Are Fitted On The Front Panel.

Trays Should Be Suppiled With G.I. Wire Mesh.

Optional Accessories:

1. Air Circulation Fan for Uniform Temperature.

2. Digital Temp. Controller cum indicator in lieu of thermostat with an accuracy of ±0.5°C.

3. S.S. Trays.
