Applications
- In determination of
- Nutrients like N, P, K, S, Ca, Mg, Zn, B, Mo, etc in Agricultural soil, plants etc.,
- Organic compounds in Biological matter.
- Glucose, Fructose, Carbohydrates, Proteins etc., in Foods.
- Edible dyes, alcohols etc., in Beverages.
- Purity of constituents in Pharmaceuticals.
- Toxic elements, Cd, Pb, Hg etc., in Effluents.
- Biological Samples.
- Constituents in compositions used in Metallurgy, Fertilizer, Pesticide, Chemical, Petro Chemical, Steel, Cement, Glass & Other Industries.

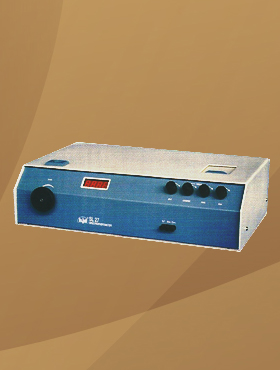

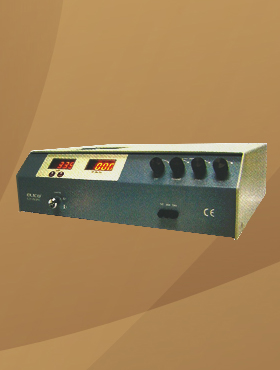

Industries using SL-207 & 27 Visible & Near IR Spectrophotometers
- Agriculture
- Government
- Food & Beverages
- Clinical
- Environmental
- Chemical & Pharma
| SPECTRAL |
| Range |
335 to 1000 nm |
| |
SL 207 |
SL 27 |
| Bandwidth |
5 nm |
10 nm |
| MONOCHROMATOR |
Czerny Turner with 600 lines/mm ruled diffraction grating |
Diffraction Grating |
|
| PHOTOMETRIC |
| Range |
0 to 1.999 Abs |
| Stability |
± 0.01 Abs/hr. after 2 hours warm-up |
| Straylight |
< 0.5% at 340 nm |
| LIGHT SOURCE |
Tungsten Halogen Lamp |
|
|
| READOUT |
3½ digit 7 segment LED of 12.7 mm height |
| Readability |
0.1% T 0.001 Abs 1 unit conc |
|
| SAMPLE ATTACHMENT |
| Standard |
2 position, manual operated holder for 10mm path length cuvette |
| Optional |
2 position, manual operated holder for multiple path length cuvettes |
|
