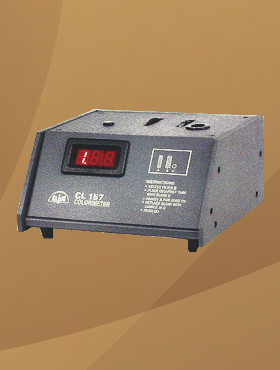

CL 157
Applications
In determination of concentration of constituents in
- Clinical, Pharmaceutical, Food, Beverage & Water analysis
- Analytical & Agricultural chemistry
- Aquaculture and Agriculture soil testing
- Biological Samples
- Metallurgy
Specifications
| PHOTOMETRIC : | |
| Range | 0 to 1.99 Abs |
| Repeatability | ± 0.01 Abs |
| Stability | ± 0.01 Abs in 8 hrs. |
| LIGHT SOURCE | Long life solid state light source |
| FILTER (8) | Peak transmission at 450, 470, 510, 520, 540, 570, 600 & 670 nm |
| SHUTTER | To prevent the detector from continuous exposure to light |
| DETECTOR | Photodiode |
| READOUT | 2½ digit 7 segment LED display of 12.7mm height |
| POWER REQUIREMENT | 230 V ± 10%, 50 Hz, 1 Max. 20 VA |
| PHYSICAL DIMENSIONS | Size (W x D x H) in mm Weight in kg.270 x 180 x 110 Approx.3 |
| ACCESSORIES SUPPLIED With instruments | Matched test tubes |
